Forcipol 1  Forcipol 1 with 300 rpm fixed speed is the most basic unit in the Forcipol series. It’s suitable for both manual and automatic operation.

Forcipol 1V For laboratories preparing a wide range of different  materials, Forcipol 1V is the ideal grinder/polisher with its indefinitely variable speed range between 50-600 rpm.

Forcipol 1E  Sensitive and fragile materials, especially in the electronics and components industries need to be handled carefully. Forcipol 1E with its low and variable speed between 20-120rpm is a right choice for such applications.

Forcipol 1S Forcipol 1S has high variable speed between 100 and 1200 rpm. It is very good for polishing with alumina for polishing of cast irons and final polishing of wide variety of materials with short polishing times.

Forcipol 1M Forcipol 1M has dual speeds of 300 and 150 rpm. 300 rpm is used for grinding and 150 rpm is suitable for manual or automatic polishing with automatic head.

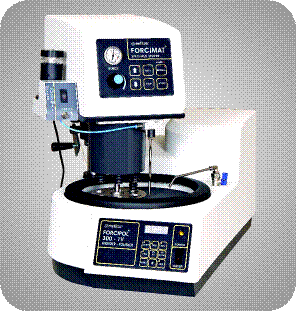

Forcipol 300-1V For large specimens and/or for having a spacious working environment with Forcimat automatic head, Forcipol 300-1V offers an ideal solution with its 300 mm working wheel. It’s variable speed between 50-600 rpm makes it suitable for grinding and polishing of wide range of materials.

Forcipol 2 Forcipol 2 has two discs with fixed speed of 300 rpm. It can be used for manual grinding and polishing. When desired it can be fitted with Forcimat automatic head for fine grinding and polishing.

Forcipol 2V Having two discs and variable speed range between 50 and 600 rpm, Forcipol 2V is the most universal grinder/polisher,    especially for labs having wide variety of materials. When coupled with Forcimat, Forcipol 2V becomes a versatile automatic sample preparation system with high operator comfort.

Automatic Operation

The FORCIMAT Automatic Head is mounted on a rigid hardened post which is fixed to the base of the FORCIPOL grinder/polisher. It can be adapted to all FORCIPOL series grinder/polishers, and is easily and rapidly positioned by means of a quick-locking clamping mechanism.

The sample holder can prepare 6 samples simultaneously and it is driven by a 60 Watt DC motor at 120 rpm. The pneumatically applied individual force is adjustable between 5 N (1.1 Ib.) and 60 N (13.5 Ib.) from the front panel and is displayed on a gauge. The housing is made of GRP with a touchpad front panel.

An adjustable and exchangeable drip lubricator is standard and the dosing level is done through an adjustable flow valve. A choice of  easily             exchangeable sample holders with set of rings from 25 to 50 mm and 1¨ to 2¨ diameter are available for use on the FORCIMAT.

The samples (1 to 6) are placed in the sample holder and the dosing level of the drip lubricator is adjusted. Sample force is set on the front panel of the FORCIMAT. Cycle time, wheel speed and direction are set on the control panel of the FORCIPOL grinder/polisher. When the start button is depressed, both the FORCIMAT and FORCIPOL start operating simultaneously. Upon completion of the cycle, both instruments stop and an audio signal notifies the operator.

FORCIPOL 1V, Variable speed grinder/polisher with

FORCIMAT Automatic Head.

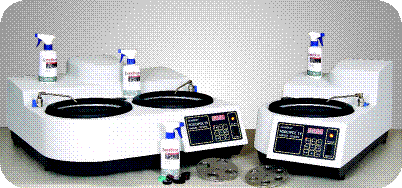

FORCIPOL 2V, Variable speed unit with two discs

By using the FORCIMAT automatic head, the efficiency   increases and same consistent sample quality is guaranteed
